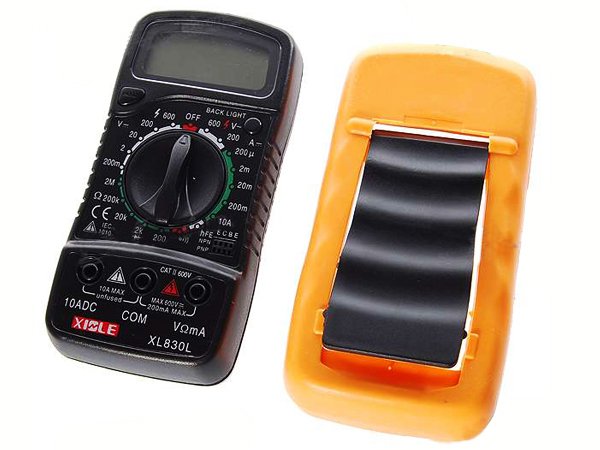

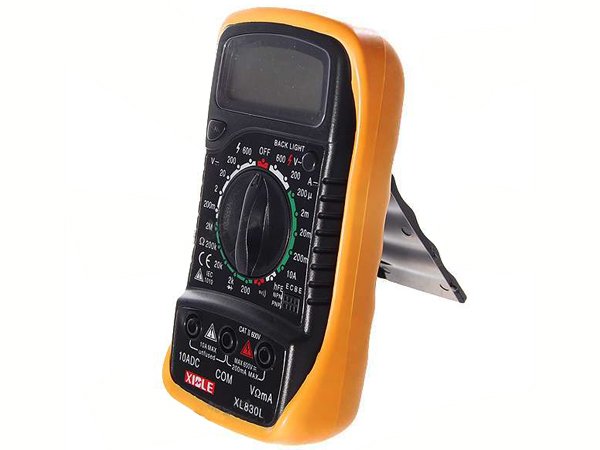

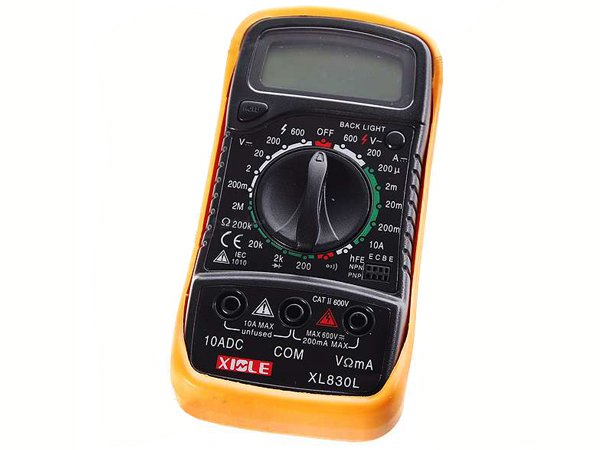

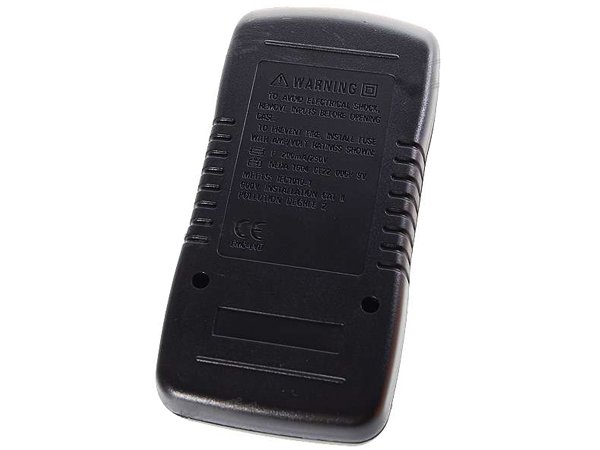

This meter is handheld Digital Multimeter for measuring DC and AC Voltage, DC Current, Resistance, Diode and Transistor with battery operated.
DC VOLTAGE
- Measurement Range 200VmV-600V
- ±0.5% of rdg ± 2 digits
- Overload Protection: 250V rms
DC CURRENT
- Measurement Range DC 2000-10A
- ±1% of rdg ± 2 digits
- Overload Protection: F 200mA/250V fuse (10A range unfused)
AC VOLTAGE
- Measurement Range 200V-600V
- ±1.2% ± 10 digits
- Overload Protection: 600VDC or rms
RESISTANE
- Measurement Range 200 Ohms - 2M Ohms
- ±0.8% of rdg ± 3 digits
- Maximum Open Circuit Volatge: 3.2V
- Overload Protection: 250VDC or rms
DIODE
- Show the approx. forward voltage drop of the Diode
TRANSISTOR
- Measurement Range hFE TEST (0-1000)
Package Includes:
- 1 x Digital Multimeter

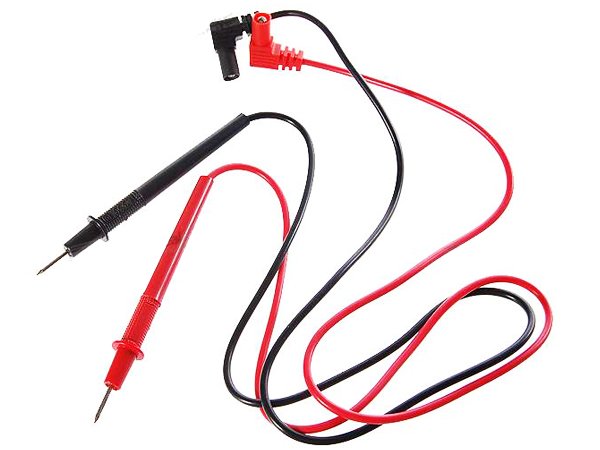

- 1 x Set of Test Leads
- 1 x Operation Instruction Manual
Specifications:
- Dimensions (L x W x H): 7.5cm x 3.2cm x 14.5cm
- Display: LCD, 1999 counts, updates 2-3/sec
- Measuring method: Dual-slope integration A/D Converter
- Operating Environment: 0 to 40 °C
- Storage Temperature: -10°C to 50°C
- Power: 9V Battery, NEDA 1604 or 6F22
- Fuse Protection: 200mA/250V
